Product Description

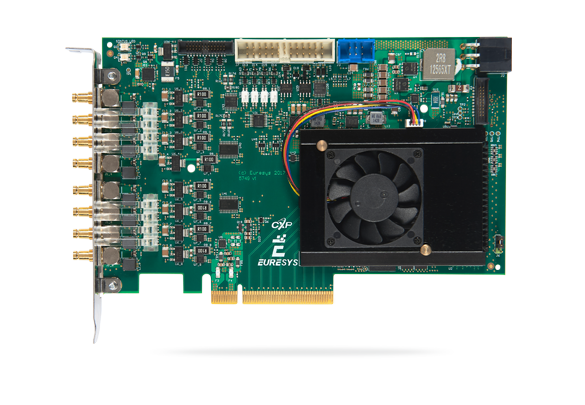

Coaxlink Octo
PCIe 3.0 eight-connection CoaXPress frame grabber
AT A GLANCE
- Eight CoaXPress CXP-6 connections: 5,000 MB/s camera bandwidth
- Connect up to eight CoaXPress cameras to one card
- PCIe 3.0 (Gen 3) x8 bus: 6,700 MB/s bus bandwidth
- Feature-rich set of 10 digital I/O lines
- Extensive camera control functions
- Memento Event Logging Tool
- Compatible with CustomLogic: Your own FPGA logic
See the DATA SHEET for additional Benefits to the below list
Benefits
PCIe 3.0 (Gen 3) x8 bus
• 7,800 MB/s peak bus bandwidth
• 6,700 MB/s sustained bus bandwidth
Acquire images from the fastest and highest resolution cameras
• Highest data acquisition rate in the industry
• 50 Gbit/s (5,000 MB/s) bandwidth from camera to host PC memory
Long cable support
• 40 meters at CXP-6 speed (6.25 Gbps)
• 100 meters at CXP-3 speed (3 Gbps)
Power over CoaXPress
• Power over CoaXPress : Feed your camera up to 17 W per channel under 24 VDC with automatic device detection, measurement and overload protection.
• Total and per-channel voltage and current measurement is possible, allowing validation and performance deviation monitoring.
Use standard coaxial cables
• A single inexpensive cable for data transfer, camera control, trigger and power supply
• Top reliability and flexibility, performs in the harshest environments
Robust connectors for reliable connections
• Coaxlink CXP-6 uses DIN 1.0/2.3 connectors with push/pull latching system
