The IDS GV-77S5WP is an exceptionally high-resolution, high-speed 10GigE industrial camera from the IDS uEye+ Warp10 series. It is engineered for applications demanding the utmost image quality and speed, such as high-precision panel inspection or detailed quality assurance on fast-moving production lines.
Key features
- High-resolution sensor: The camera features a large 1.7-inch onsemi XGS 30000 global shutter CMOS sensor, which provides a near-30 megapixel resolution (5468×5468 pixels).
- Square format: The sensor has a square 1:1 aspect ratio, which optimally utilizes the image circle of a lens and maximizes the field of view.
- High-speed performance: It delivers high-speed image capture at approximately 32.5 frames per second (fps) at full resolution, ensuring sharp images of fast-moving objects.
- 10GigE interface: The camera is equipped with a 10 Gigabit Ethernet interface, which offers a significant speed advantage over standard GigE cameras for high-bandwidth data transmission.
- Backwards compatibility: It is backward compatible with existing 1GigE, 2.5GigE, and 5GigE networks, allowing for easy integration into existing infrastructure.

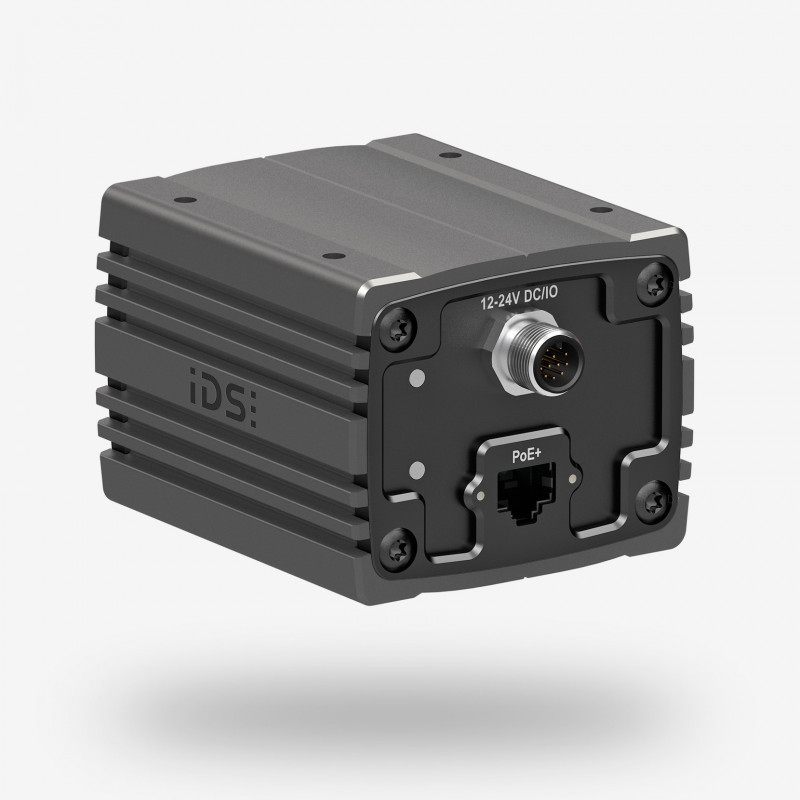

- Power over Ethernet (PoE+): PoE+ support simplifies connectivity by allowing both power and data to be transmitted over a single cable.
- TFL-mount: The camera uses a TFL lens mount, which is designed for large-format sensors and provides a secure, reliable connection for optimal image quality.
Primary applications
- Machine vision: High-speed inspection on production lines, especially for large areas.
- Panel inspection: The high-resolution and square sensor format are particularly beneficial for detecting minute defects on panels.
- Quality control: Detailed inspection and quality assurance tasks.
- Sports and motion analysis: Capturing fast-moving objects without motion blur.
- Surveying: Applications that require high-resolution image capture over a wide area
