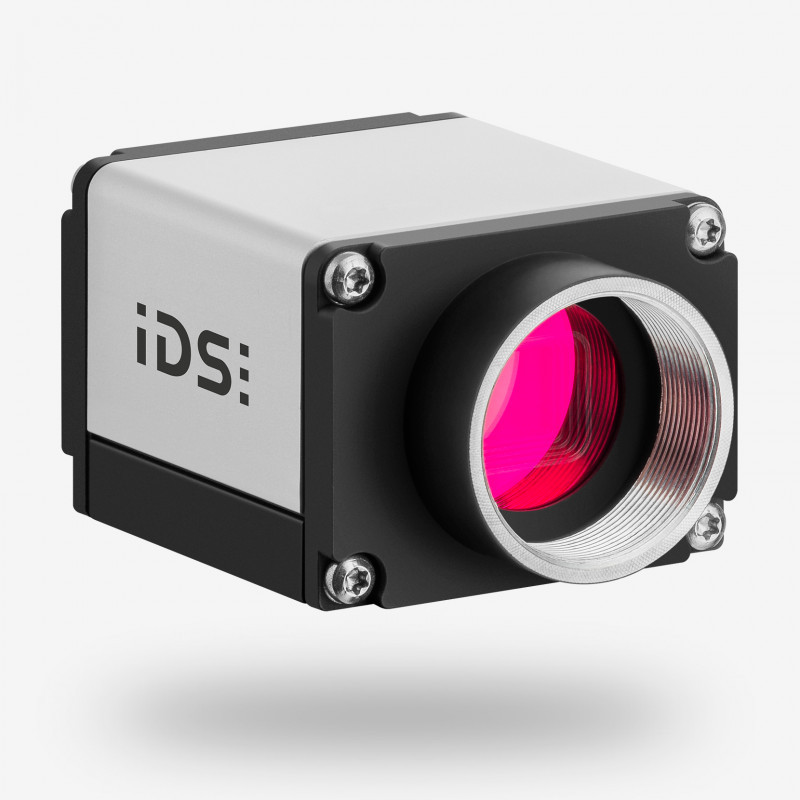

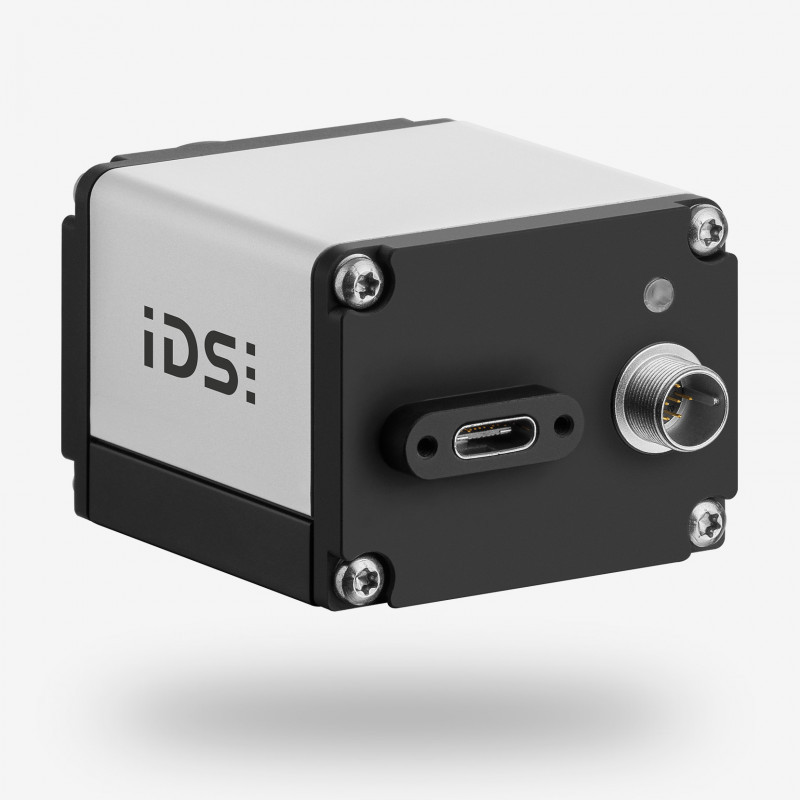

The USB3 Vision industrial camera U3-3880SE with the rolling shutter CMOS sensor Sony IMX178 offers a very high resolution of 6.41 MPix (3088 x 2076 px px), which is ideal for visualization tasks in microscopy and as a cost-efficient option for intelligent traffic monitoring systems (ITS). The sensor from the Sony STARVIS series features BSI technology ("back-side-illumination") and is one of the most light-sensitive sensors with a low dark current close to the SCMOS range (Scientific CMOS). It provides impressive results even under extremely low light conditions. In combination with our USB3 Vision industrial cameras, the Sony IMX178 delivers frame rates of up to 59.0 fps at full resolution. Thanks to the 1/1.8" sensor size, a wide range of C-mount lenses is available for the U3-3880SE camera model.
Special functions include 60.0 s long exposure and the linescan mode for using the area scan camera as a cost-effective line scan camera alternative.
The U3-3880SE is available in both monochrome and color variants.
This camera model is supported by IDS Vision firmware 2.0 and higher.
| Item number |
|
|---|---|
| Camera family | SE |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Sensor manufacturer | Sony |
| Frame rate @ resolution max. | 59.0 fps |
| Resolution (h x v) | 3088 x 2076 px |
| Optical Area | 7.411 mm x 4.982 mm |
| Shutter | Rolling Shutter |
| Optical class | 1/1.8" |
| Resolution | 6.41 MPix |
| Pixel size | 2.40 µm |
| IP code | IP30 |
| Sensor model | IMX178 |
| Product Life Cycle | Series |
