This camera has been discontinued, please contact us for replacement options

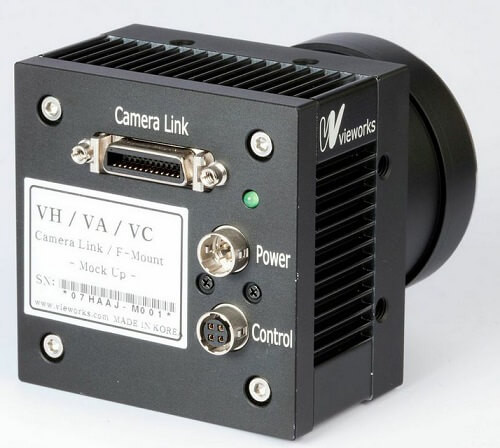

VH Camera Link series is a progressive scan high performance industrial digital camera. Camera features are easily updated in the field using our standard serial interface. These cameras use the latest CCD technology from Truesense Imaging, Inc. (formerly Kodak Imaging Solution) and Sony which provides superior low noise performance resulting in high dynamic range. The VH Camera Link series is an excellent choice for applications such as LCD inspection, Machine Vision inspection, Research and Scientific imaging and aerial imaging.
Sensor
|
Sensor Technology |
CCD |
|
Resolution (h x v) |
2448 x 2056 |
|
Bit depth |
8/10/12 bit |
|
Sensor Size (format) |
2/3" |
|
Shutter |
Global shutter |
|
max. fps in Free-run Mode |
16 fps |
|
Pixel size |
3.45 μm x 3.45 μm |
Design
|
Interface |
Camera Link |
|
Lens Mount |
C-Mount |
|
Dimensions H/W/L |
68 mm x 68 mm x 54 mm |
|
Weight |
420g |
|
Power supply |
10-14VDC |
