Product Description
VC-127MC-C 8 H Area Scan Camera
The VC-127MC-M/C6H, the latest model of the industrial proven VC series, is a new 127-megapixel resolution CMOS cameras available with the Camera Link interface. The camera is based on the CMOS global shutter image sensor technology (IMX661) from Sony. The VC-127MC-M/C6H offers up to 6.2 frames per second at 13376 × 9528 resolution. Equipped with the Vieworks’ innovative technologies proved by world’s top FPD manufacturers, the VC-127MC-M/C6H camera offers not only highly uniformed images but also high-speed image processing capabilities. Featured with high-quality image uniformity and high-resolution, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.
Main Features
- 127-Megapixel Resolution
- Camera Link Full Interface
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction with Sequencer Control
- Hot Pixel Correction
- Defective Pixel Correction
Applications
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning

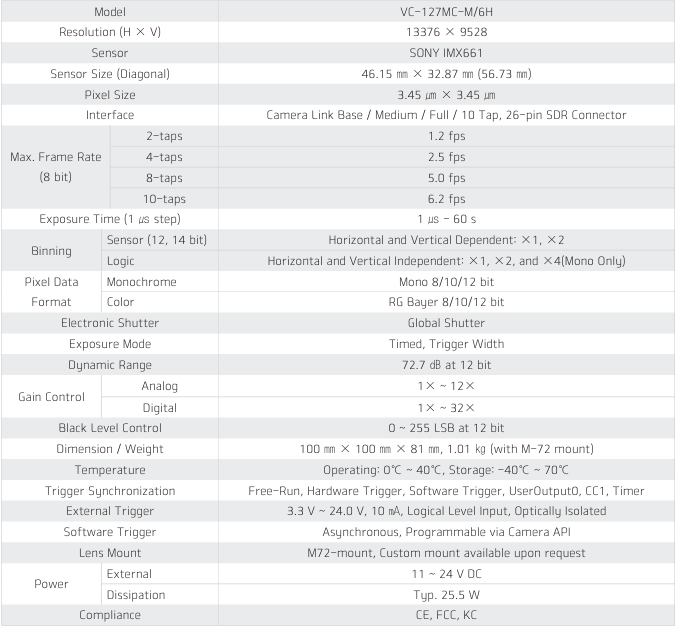

Specifications
