Product Description

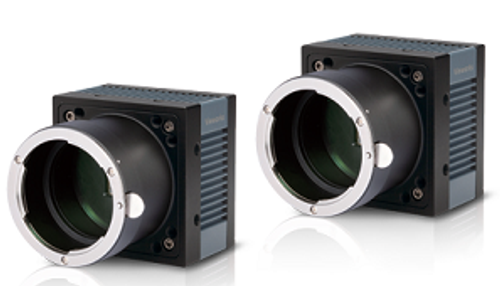

VC-12MC-M 65 Area Scan Camera
The VC-12MC-65, VC-25MC-30 and VC-25MC-30 D, the latest members of the CMOS-based VC series, are our new high resolution CMOS cameras with Camera Link interface. The VC-12MC uses the latest 12 megapixel CMOS sensor (CMV12000) technology from CMOSIS, and performs as fast as 64 fps with high quality image. The VC-25MC-30 is based on ON Semiconductor VITA-25K CMOS sensor delivering high quality 25 megapixel images at 30 fps. The VC-25MC-30 D uses the latest 25 megapixel CMOS image sensor (PYTHON-25K) technology from On Semiconductor, and delivers high quality images at 30 fps. With their high resolution and fast speed, these cameras are ideal for applications such as PCB inspection, AOI machines, 3D inspection and many others.
Main Features
- Resolutions from 12MP up to 25MP
- High-Speed Progressive Scan CMOS Image Sensor
- Global Shutter CMOS Technology
- Full Camera Link Interface with 8 bit or 10 bit Data Output
- Excellent Noise Reduction and Heat Treatment
- Field Upgradable Firmware
- Pixel Defect Correctionl
Applications
- PCB Inspection
- Semiconductor Inspection
- 3D Inspection
- Scientific Research Imaging

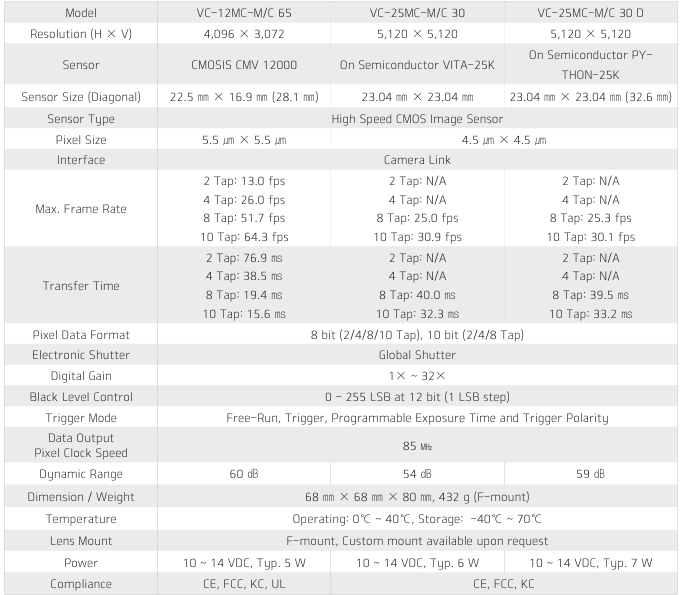

Specifications
