Product Description
VC-21MX2-M/C230I The Fastest Speed & High Resolution CMOS Digital Camera with CoaXPress 2.0 Interface
The VC-21MX2-M/C230I camera is Vieworks’ first camera with the CoaXPress 2.0 interface that offers 230 frames per second at 5120 × 4096 resolution. Equipped with the Vieworks’ innovative technologies proved by world’s top FPD manufacturers, this camera offers not only fast frame rates but also highly uniformed images. Its CoaXPress 2.0 interface supports transmitting image data at up to 50 Gbps using four coaxial cables. Featured with high speed and high performance, the VC-21MX2-M/C230I camera is an excellent choice for applications that require high data rates and resolutions, such as FPD, PCB and semiconductor inspections. For wide range of choice, Vieworks provides this amazing product in two different types, the fan type and the heat sink type, with the same specification
MAIN FEATURES
- High Speed 21 Megapixel CMOS Image Sensor
- CoaXPress 2.0 Interface up to 230 fps at 50 Gbps using 4 CH
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Defective Pixel Correction
- GenICam Compatible - XML based Control
APPLICATIONS
- FPD and Electronics Inspection
- Semiconductor Inspection
- Research and Scientific Imaging
- Document / Film Scanning

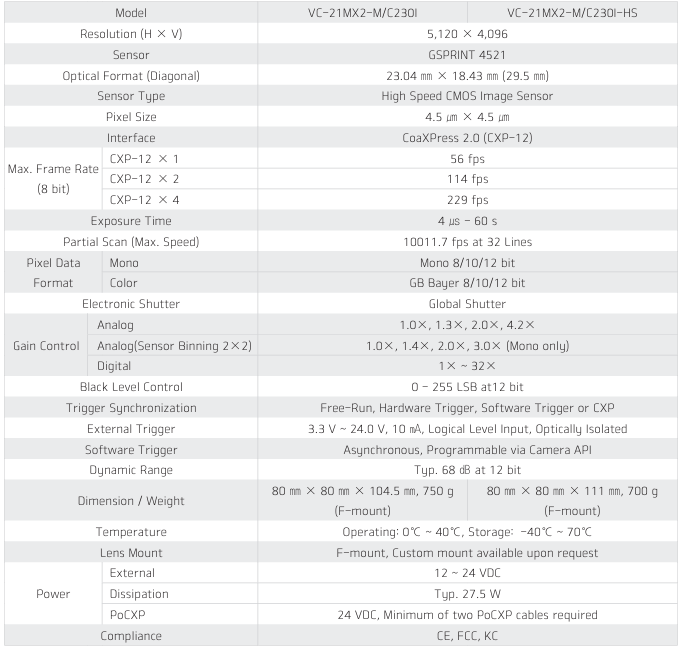

SPECIFICATIONS
