Product Description
VC-25MC-M 31 I Area Scan Camera
The VC-25MC-31 I, the latest model of the industrial proven VC series, is a new 25 megapixel resolution CMOS camera with the Camera Link interface. The VC-25MC-31 I uses the latest CMOS global shutter image sensor (GMAX0505) technology from Gpixel and offers up to 31.7 frames per second at 5120 × 5120 resolution. These combinations of high resolution, high speed and global shutter set a new standard for industrial, scientific and surveillance digital imaging applications. Equipped with the Vieworks’ innovative technologies proved by world’s top FPD manufacturers, the VC-25MC-31 I camera offers not only highly uniformed images but also high speed image processing capabilities. Featured with high quality image uniformity and high resolution, this camera is ideal for wide range of demanding applications such as FPD, PCB and semiconductor inspections.
Main Features
- 25 Megapixel Resolution
- Camera Link Full Interface up to 31.7 fps
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- GenICam Compatible - XML based Control
Applications
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning

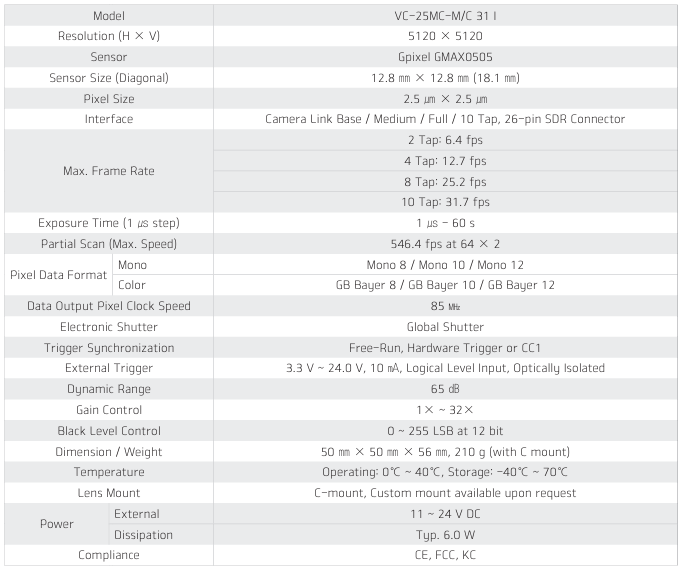

Specifications
