Product Description
VC-25MX-M/C91I 25 Megapixel High Speed CMOS Digital Camera
The VC-25MX-91I, the latest model of the industrial proven VC series, is a new 25 megapixel resolution CMOS camera with the CoaXPress interface. The VC-25MX-91I uses the latest CMOS global shutter image sensor (GMAX0505) technology from Gpixel and offers up to 91.3 frames per second at 5120 × 5120 resolution. These combinations of high resolution, high speed and global shutter set a new standard for industrial, scientific and surveillance digital imaging applications. Customers in the industrial market can take advantage of common coax cabling to transmit images at rates and distance above and beyond previous standards. This high speed and high resolution camera is ideal for wide range of demanding applications such as FPD, PCB and semiconductor inspections
MAIN FEATURES
- 25 Megapixel Resolution
- CoaXPress Interface up to 91.3 fps at 25 Gbps using 4 CH y Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Dynamic Defective Pixel Correction
- GenICam Compatible - XML based Control
APPLICATIONS
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning

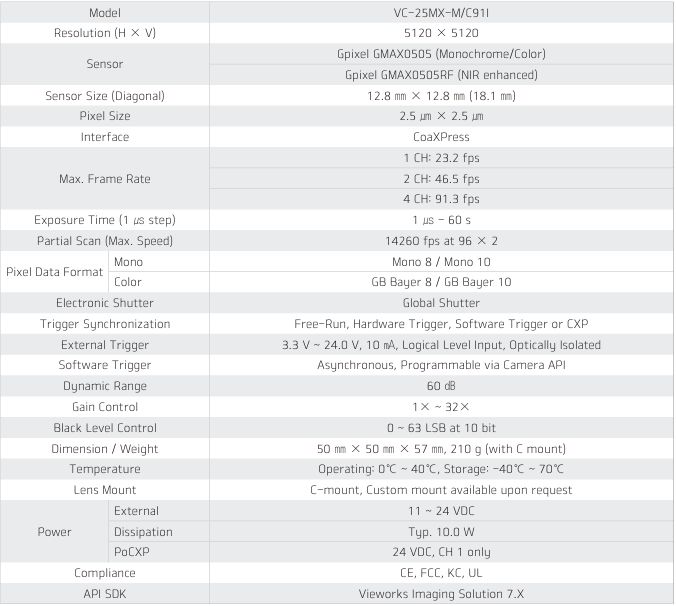

SPECIFICATIONS
