Product Description
VC-4MX-M144F Series Compact 4MP CMOS Digital Camera with CoaXPress Interface
The VC-4MX-M144F series, a very compact solution for easy system integration, is based on the CMOS global shutter imager. These VC-4MX cameras feature 4 megapixel resolution with frame rate up to 144 fps. This combination of global shutter, resolution and frame rate sets a new standard for industrial, sci entific and surveillance digital imaging applications. Customers in the industrial market can take advantage of common coax cabling to transmit images at rates and distance above and beyond previous standards. With these cameras, image data can be transmitted at up to 6.25 Gbps using a single coaxial cable. Featuring high quality image and high speed, this camera is ideal for wide range of demanding applications including PCB and semiconductor inspections. For wide range of choice, Vieworks provides this amazing product in three different types, the fan-less type, the fan type, and the FV type with the same specification
MAIN FEATURES
- 4 Megapixel Resolution
- Global Shutter CMOS Technology
- CoaXPress Interface up to 144 fps at 6.25 Gbps
- Reverse X / Reverse Y
- Defective Pixel Correction
- Low Noise with Optimized Heat Treatment
- GenICam Compatible - XML based ControL
APPLICATIONS
- PCB Inspection
- Semiconductor Inspection
- 3D Inspection
- High-end Surveillance

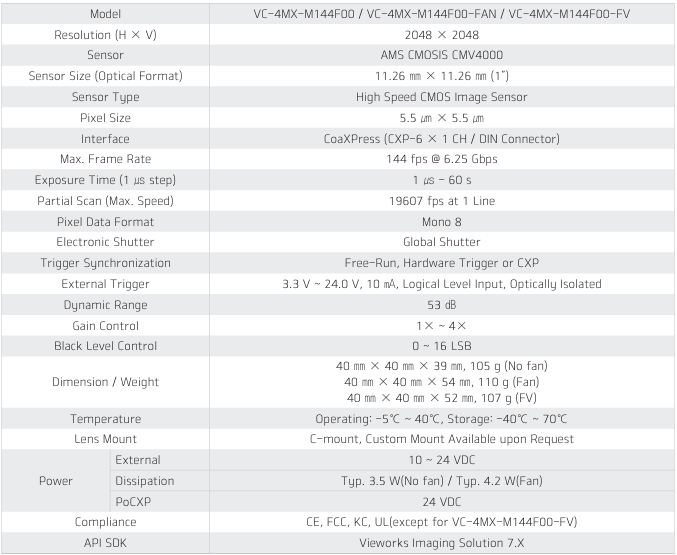

SPECIFICATIONS
