Product Description
VC-50MC-M 18 Area Scan Camera
The VC-50MC, the latest member of the industrial proven VC series, is a 50 megapixel resolution CMOS camera with the Camera Link interface. The VC-50MC uses the latest 50 megapixel CMOS imaging sensor (CMV50000) technology from AMS CMOSIS, and offers up to 17.5 frames per second at 7920 6004 resolution. Equipped with the Vieworks’ innovative technologies proved by world’s top FPD manufacturers, the VC-50MC camera offers not only highly uniformed images but also high speed image processing capabilities. Featured with high quality image uniformity and high resolution, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.
Main Features
- 50 Megapixel Resolution (AMS CMOSIS)
- High Speed Progressive Scan CMOS Imager
- Global Shutter CMOS Technology
- Camera Link (Base / Medium / Full) Interface
- Pixel Defect Correction
- Flat Field Correction
- DSNU and PRNU Correction
Applications
- Flat Panel Display Inspection
- PCB Inspection
- Machine Vision Inspection
- Microscopy and Metrology

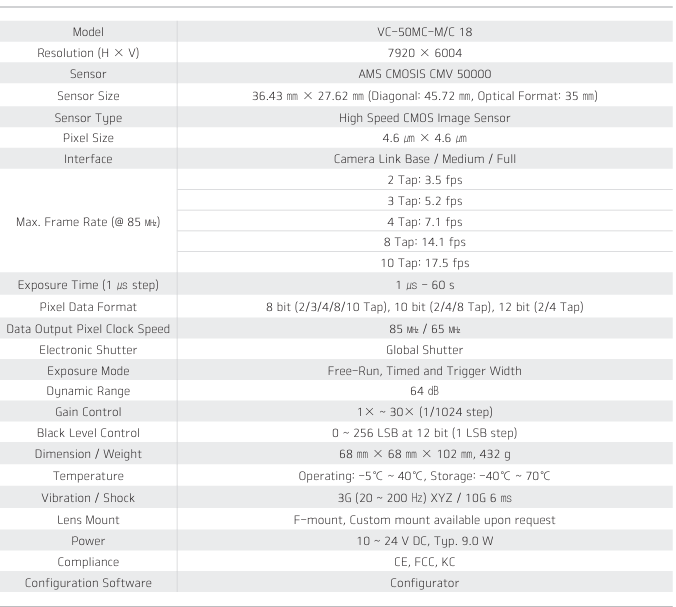

Specifications
