The WEOM® Zoom Block is not just a component – it’s a fully developed, ready-to-use thermal imaging solution. Unlike many thermal cores or modules that require additional hardware, software development, or customization, the WEOM® Zoom Block is delivered as a complete, pre-integrated package. With advanced motorized optical zoom (35–105 mm) users can precisely monitor scenes at varying distances without compromising image clarity – whether observing large industrial zones, securing borders, or tracking moving objects from a UAV.
Its robust aluminum body, IP67-rated front lens, and wide operating temperature range ensure long-term performance in harsh outdoor conditions or mission-critical applications. With high thermal sensitivity (<30 mK), full-frame 60 Hz refresh rate, and a choice of color palettes and zoom levels, the module delivers exceptional situational awareness even in total darkness or extreme weather.

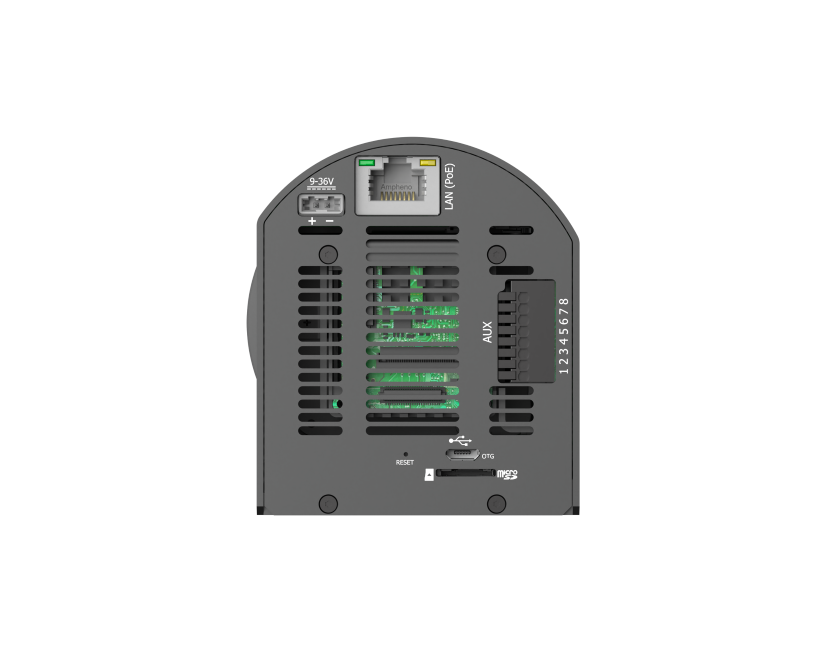

Connectivity & interfaces: Ethernet, ONVIF/RTSP, RS 485, 2-pin Power Input, AUX Connector
HIGH IMAGE QUALITY
Powered by advanced FPGA image processing technology, WEOM® thermal cores deliver exceptional image quality and scene visualization. With a high sensitivity of 30mK and a 640 x 480 pixel resolution, these cores accurately detect and visualize even the most subtle temperature differences. This superior sensitivity and resolution make WEOM® cores ideal for a broad spectrum of demanding applications, ranging from precise industrial inspections to critical security and surveillance tasks.
ADVANCED LENSES WITH ZOOM
The WEOM® Zoom Block is available with a 35–105 mm motorized optical zoom lens, offering 3× continuous zoom with exceptional detection range. Using Johnson’s Criteria, the system can detect a human-sized object at distances up to 3,910 meters, a vehicle up to 9,470 meters, and a drone up to 2,060 meters. The lens features a fast f/1.6 aperture, IP67-rated front lens protection, and a durable DLC (diamond-like carbon) coating – all essential for delivering high-quality thermal imaging in harsh environments and mission-critical applications.
WIDE RANGE OF APPLICATIONS
WEOM® thermal cores are designed to meet the demands of various challenging applications. They are well-suited for use in maritime cameras, machine vision systems, monitoring, and intelligent systems. The robust construction and high performance of WEOM® cores ensure reliable operation even in extreme conditions. This versatility makes WEOM® an ideal choice for industries that require dependable and precise thermal imaging solutions.
FAST START-UP AND EASY CONTROL
Designed for efficiency and ease of use, WEOM® thermal cores offer a rapid startup time of under 5 seconds, enabling users to begin operations swiftly. Control is made simple through the intuitive Thermal Core GUI software, which also facilitates convenient remote firmware updates. This combination ensures easy management, updates, and overall enhanced operational efficiency for various applications.
DURABILITY AND RELIABILITY
Built for the toughest environments, WEOM® thermal cores feature a durable aluminum body and IP67 protection, making them exceptionally resistant to dust and water. They operate reliably across a broad temperature range of -40°C to +80°C, ensuring consistent performance even in harsh conditions. This robust construction, combined with compliance to standards like ROHS, REACH, WEEE, and CE, highlights the inherent reliability and lasting value of WEOM® thermal cores
