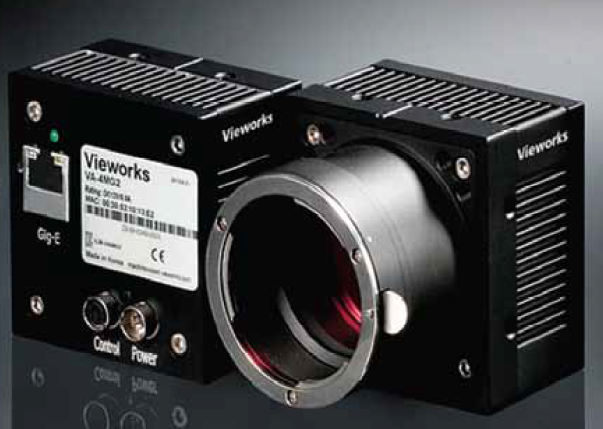

VA GigE Series is a progressive scan, high-resolution industrial area scan cameras. The camera uses an interline transfer CCD from Truesense Imaging, Inc. (formerly Kodak Imaging Solutions) and provides superior noise performance resulting in high dynamic range. All features of VA GigE series can be programmed and easily updated in the field through Gigabit Ethernet interface. This camera series is ideal for demanding applications such as semi-conductor inspection, electronics inspection, aerial imaging inspection and FPD inspection.
Sensor
|
Sensor Technology |
CCD |
|
Resolution (h x v) |
1920 x 1080 |
|
Bit depth |
8/10/12 bit |
|
Sensor Size (format) |
2/3" |
|
Shutter |
Global shutter |
|
max. fps in Free-run Mode |
39 fps |
|
Pixel size |
5.5 μm x 5.5μm |
Design
|
Interface |
GigE |
|
Lens Mount |
C-Mount |
|
Dimensions H/W/L |
68 mm x 68 mm x 54 mm |
|
Weight |
420g |
|
Power supply |
10-15 VDC |
