Product Description

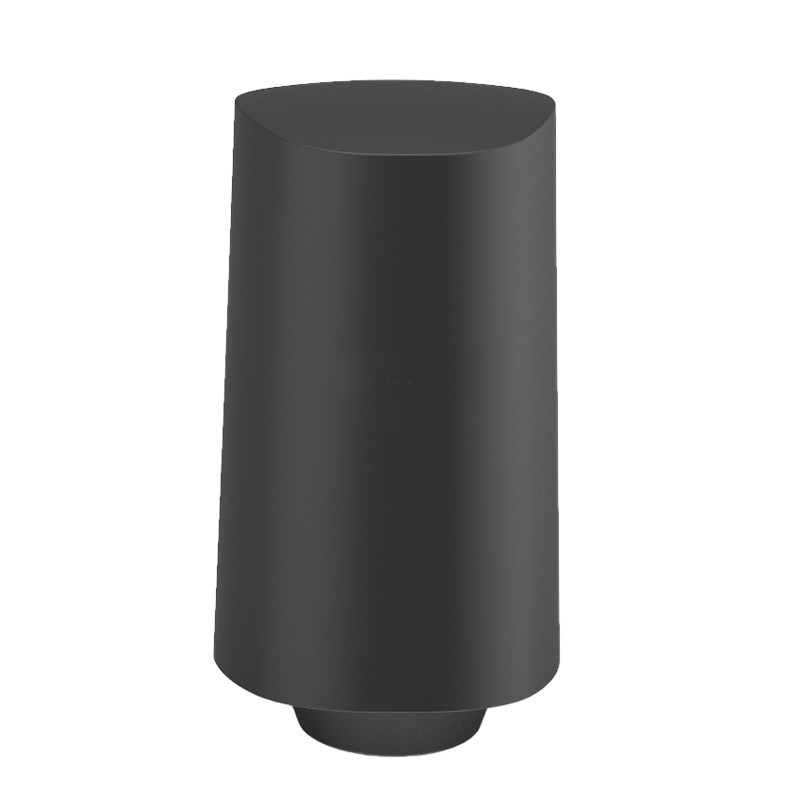

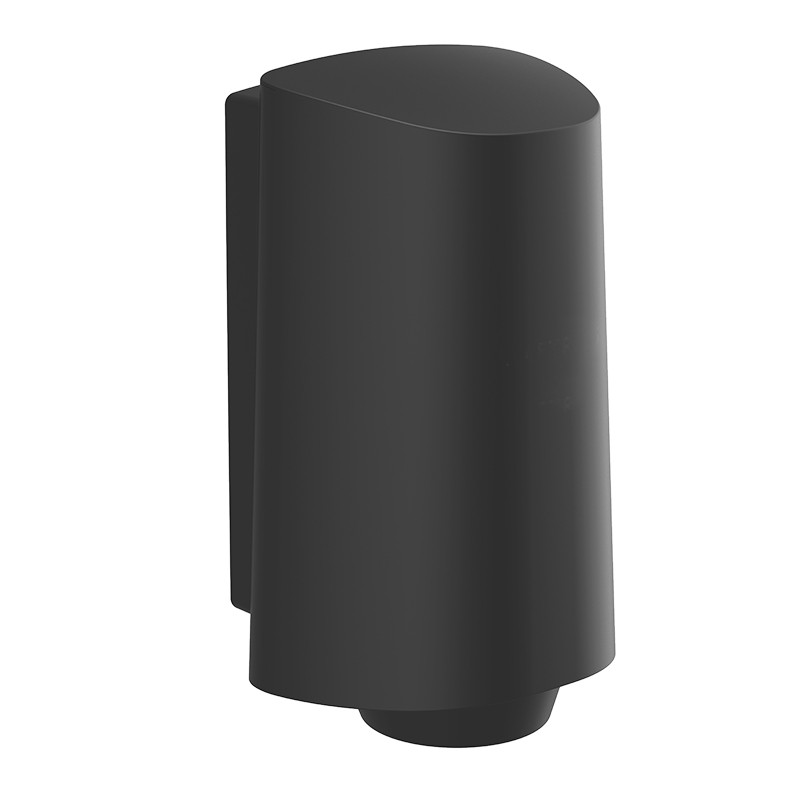

The Bestscope BC20 3D Super EDF Microscope Camera is a C-Mount camera designed to enhance microscopic observation and analysis by adding 3D imaging and measurement capabilities. It is marketed as a standalone solution for acquiring 3D images and performing measurements without the need for a computer, instead relying on its internal software and a mouse for operation.
Key features and specifications DATA SHEET
Features
- 3D Super Extended Depth of Field (EDF): It allows users to observe and measure samples in three dimensions, overcoming the limited depth of field inherent in traditional microscopy.
- Built-in Intelligent Host: The camera features an internal host that can perform complex calculations directly, streamlining workflows and eliminating the need for a separate computer.

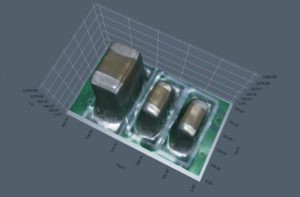

- Real-time EDF and 3D Modeling: The camera's intelligent EDF algorithm and 3D modeling capabilities provide real-time super depth of field and 3D image reconstruction for clear and accurate observations and measurements.
- Automatic Edge Recognition: The camera's built-in algorithm can automatically recognize object edges, improving efficiency in microscopic observation and batch operations.
- Wide Dynamic Range (WDR): It can capture perfectly exposed images by calculating data from multiple brightness levels, effectively reducing reflections and improving image quality, according to SIMTRUM.com.
- Easy to Use Interface: It operates with a user-friendly graphical interface, with all functions accessible via mouse clicks.
- Broad Compatibility: The BC20 is compatible with various microscopes such as upright, inverted, and stereo microscopes, using a standard C-mount adapter.
- Measurement Accuracy: It offers ±2μm measurement accuracy for both 2D and 3D measurements when used with a 10x objective lens.
- Report Generation: The camera can create reports combining images, videos, and 2D/3D measurement data
Specifications
- Model: BC20
- Sensor: Sony 1/2" color CMOS
- Resolution: 1080p (1920x1080)
- Pixel Size: 3.75μm x 3.75μm
- Frame Rate: 60fps (Normal) and 30fps (WDR)
- Shutter Mode: Rolling
- Exposure: Automatic (0.1ms-16.6ms) and Manual (0.0001s-1s)
- USB Ports: 3 x USB 2.0, 1 x USB 3.0
