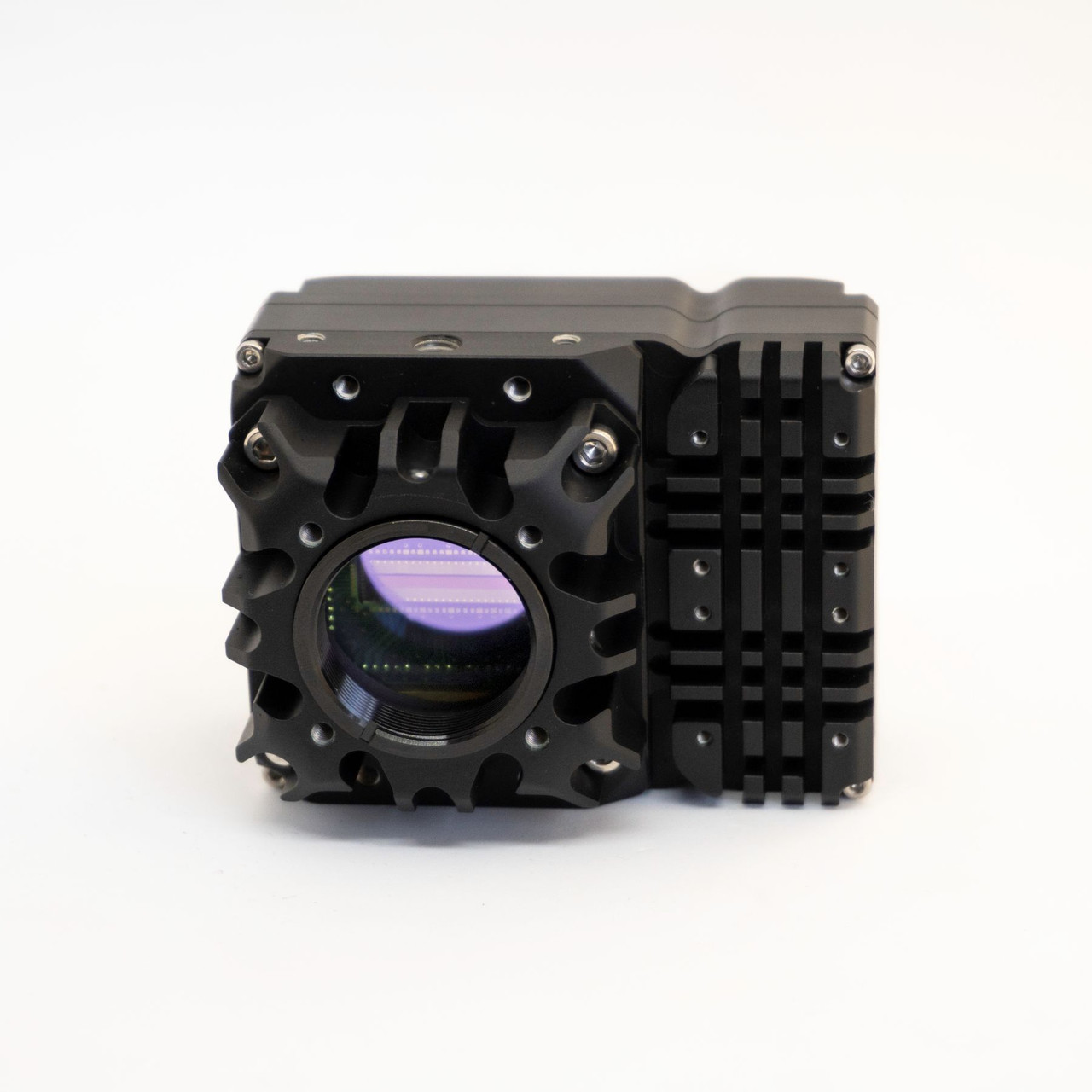

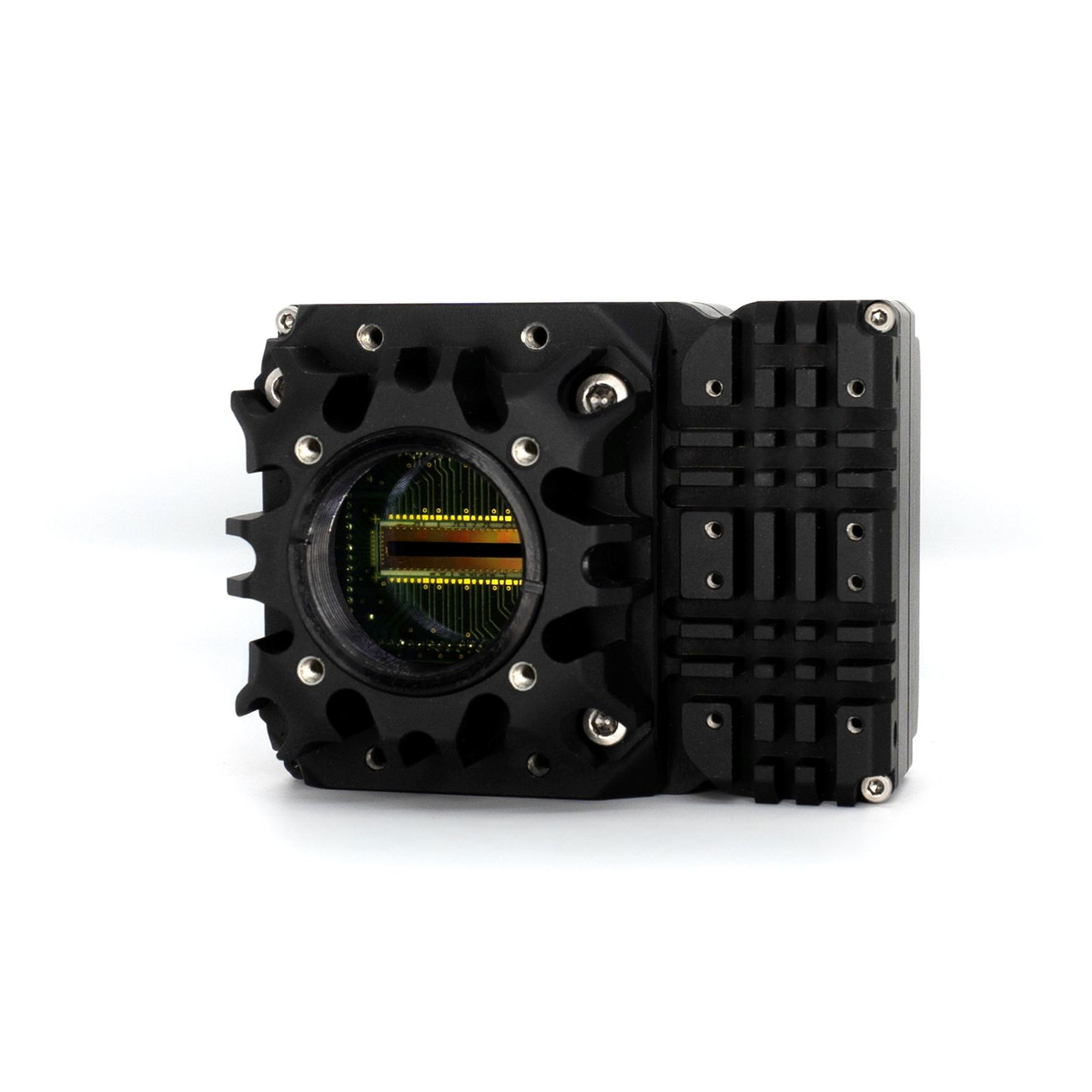

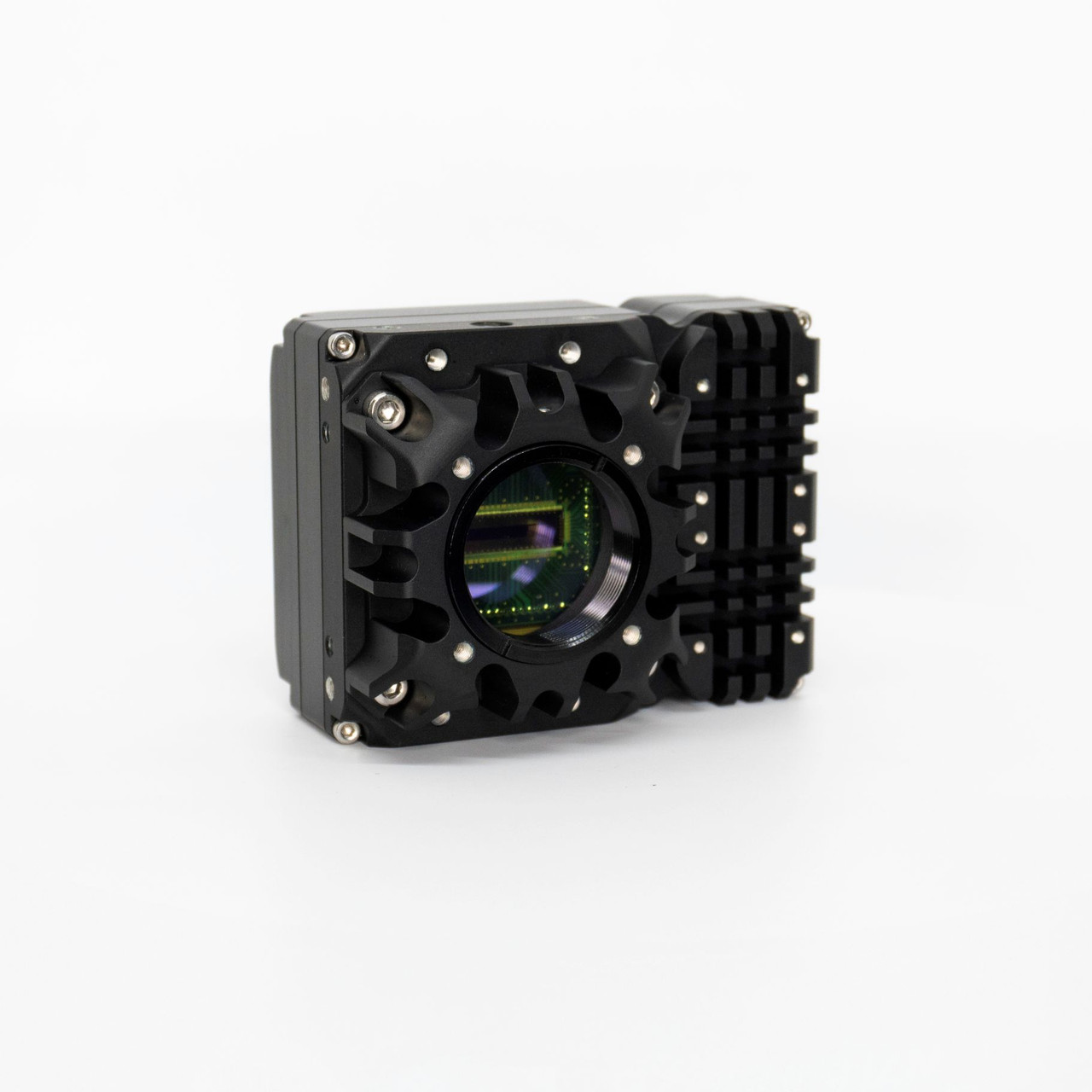

The LiSaSWIR 2048 v2 (LiSa SWIR 2048M STE2) Featuring NIT's advanced NSC2301 InGaAs sensor, it is the next generation of high-speed SWIR line-scan cameras. This upgraded model provides significant improvements in image quality, sensitivity, and flexibility for a variety of inspection tasks.
- Line-scan array featuring NIT’s NSC2301 sensor, designed and manufactured by NIT
- 2K resolution – 2048x1px @8µm pixel pitch x 14µm height
- Frame rate >110Hz Full resolution
- High Sensitivity, Low noise <90e-
- High Dynamic Range
- CameraLink interface
- GenICam compliant
Resolution and Speed:
The LiSaSWIR 2048 v2 delivers exceptional resolution with 2048 pixels and an 8 µm pitch x 14µm height. Supporting standard 1.1” format lenses, it can capture images of fast-moving objects with line rates over 110 kHz and configurable exposure times, using both ITR and IWR readout modes.
The LiSaSWIR 2048 v2 delivers exceptional resolution with 2048 pixels and an 8 µm pitch x 14µm height. Supporting standard 1.1” format lenses, it can capture images of fast-moving objects with line rates over 110 kHz and configurable exposure times, using both ITR and IWR readout modes.
Sensor Performance:
Key to its industrial-grade performance is the NSC2301 sensor, which features enhanced uniformity, reduced noise, lower dark current, and precise gain control. Built-in Non-Uniformity Correction (NUC) and Bad Pixel Replacement (BPR) further guarantee consistent, high-quality image output in demanding environments.
Key to its industrial-grade performance is the NSC2301 sensor, which features enhanced uniformity, reduced noise, lower dark current, and precise gain control. Built-in Non-Uniformity Correction (NUC) and Bad Pixel Replacement (BPR) further guarantee consistent, high-quality image output in demanding environments.
Integration:
Integration into existing inspection systems is simple, thanks to the LiSaSWIR 2048 v2's compact size and its industry-standard CameraLink interface.
Integration into existing inspection systems is simple, thanks to the LiSaSWIR 2048 v2's compact size and its industry-standard CameraLink interface.
Typical applications include:
- Semiconductor and photovoltaic inspection
- Food and vegetable sorting
- Waste management and recycling
- Pharmaceutical packaging and process control
