Shining 3D Einscan Rigil Tri-Mode Laser 3D Scanner
Triple Work Modes
The EinScan Rigil offers three operation modes to unlock max performance and flexibility
-
Standalone Mode: No PC connection required, all scanning and processing tasks are completed directly on the hardware.
-
Wireless PC Mode: Leveraging built-in Wi-Fi 6, enables seamless wireless scanning and allows connection to a powerful computer, optimizing performance for complex tasks and large data volumes.
- Wired PC Mode: Maintaining availability, maximum scanning speed, and data volume in complex network environments.
Hybrid Light Source
2 separate groups of cameras are specifically designed to capture different light sources respectively.
- Blue laser lines
- VCSEL infrared
Laser HD Mode
Provides high-quality models with 0.04 + 0.06 mm/m volumetric accuracy and high geometric resolution up to 0.05mm.
- 19 + 19 crossed laser lines: for high speed scanning, delivers top-tier efficiency and flexibility.
- 7 parallel laser lines: for fine details, provides consistent results.
Hybrid Light Source
- Blue laser lines
- VCSEL infrared
Dynamic Laser Switching
- Two laser scan modes can be switched during the scanning process, and the data can be merged to achieve speed and detail in one scanning project.

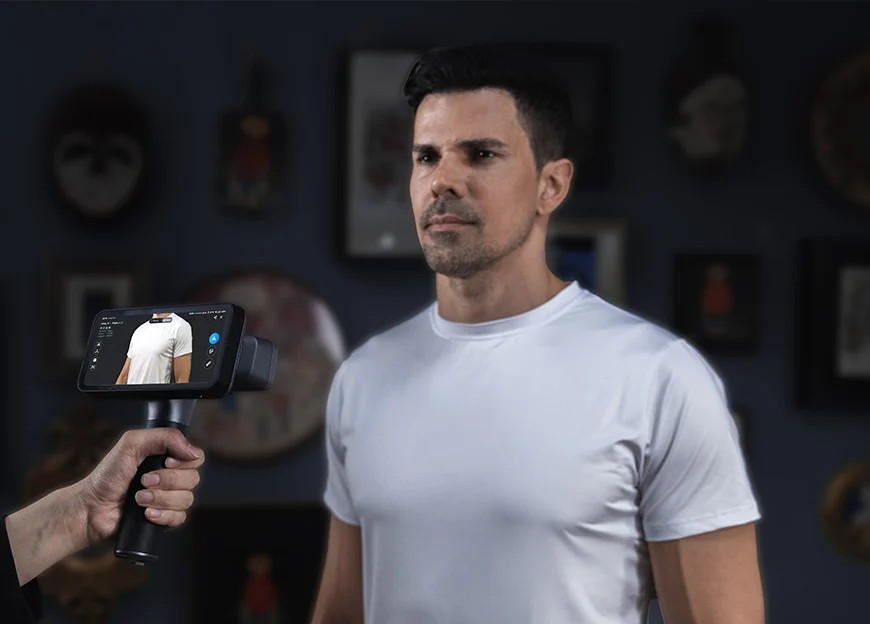

IR Rapid Mode
- Volumetric accuracy up to 0.1 + 0.3 mm/m
- Working distance 160 ~ 1500 mm
- Scanning speed up to 1,600,000 points/s
Marker-Free Laser Scanning
- EinScan Rigil features a special tracking algorithm, which provides marker-free blue laser scanning through a Laser + IR hybrid scan mode currently available in EXScan Rigil software. This enables better efficiency than traditional marker-based laser scanning and better data quality than marker-free IR scanning.
Full Color Texture Scanning
- Equipped with a 5MP high-definition camera that can restore high-quality texture details, allowing designers, engineers, and artists to maintain a high fidelity of the model during the digitization process, providing more precise information for subsequent analysis and creation.

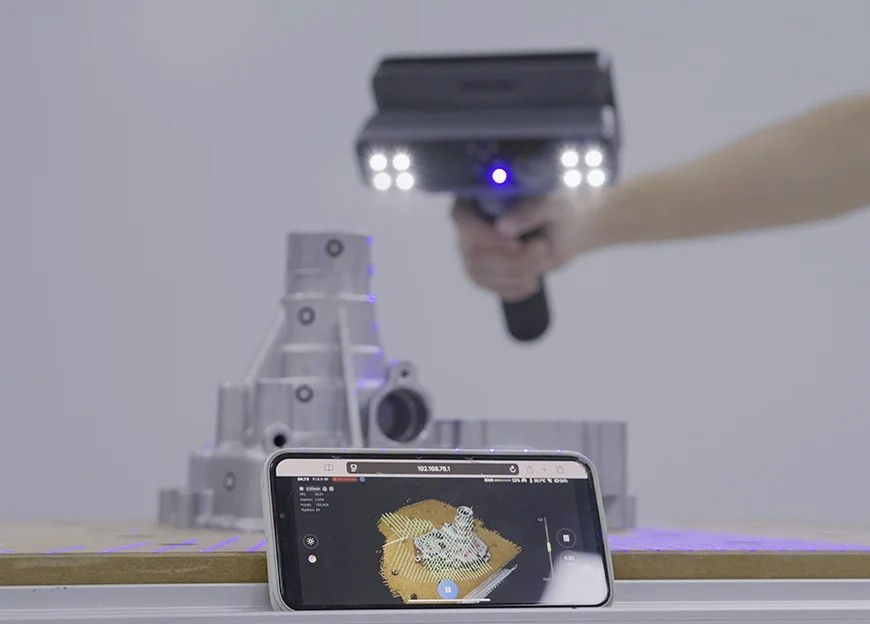

Wireless Workflow
- Wireless scanning: Without connecting to PC
- Wireless transfer: Data sharing to SHINING 3D Cloud
- Wireless screen casting: Display on a second screen
Reliable Scanning from Workshop to Outdoors
- Working efficiently in sunlight outdoors.
- Adaptable for dark and reflective metal surfaces without spray.
Powerful Hardware
- 6.4'' 2K AMOLED
- 32GB DDR5 RAM
- 32GB eMMC + 1TB SSD ROM
- 6000mAh × 2 Replaceable Batteries
EXScan Rigil Software
EXScan Rigil is a dedicated PC software for the full spectrum of advanced professional scanning workflows, which provides rich post-processing and mesh editing functions for model cleanup and better integration to 3D design workflow
