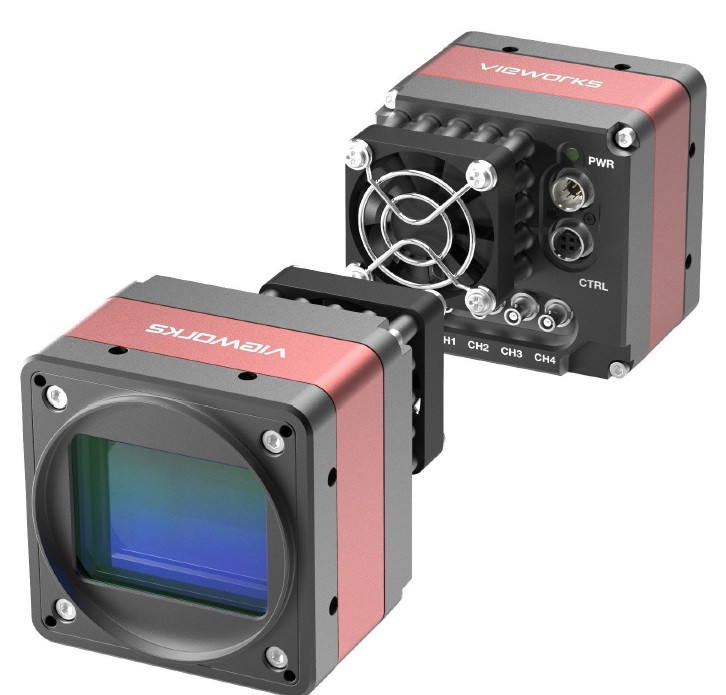

The Vieworks VC-51MX2-M/C30I00 is a high-speed, high-resolution area scan camera belonging to Vieworks' VC series. It's designed for demanding machine vision and industrial inspection applications.
Key features
- Sensor: It uses a 2.7" Progressive Scan CMOS sensor, specifically the Gpixel GMAX4651.
- Resolution: It boasts a high resolution of 51 Megapixels (8416 x 6032).
- Frame Rate: It can capture images at 30.3 frames per second (fps).
- Shutter Type: It utilizes a global shutter, minimizing motion blur and distortion.
- Mount: It supports F-Mount lenses.
- Interface: It connects via a CoaXPress (CXP-12) interface, using 4 lanes for high-speed data transfer.
- Monochrome/Color: The camera model number indicates it's available in both monochrome (M) and color (C) versions
Applications
The VC-51MX2-M/C30I00 is well-suited for applications requiring high speed and resolution, including:
- Flat Panel Display (FPD) inspection
- Printed Circuit Board (PCB) inspection
- Semiconductor inspection
- Aerial imaging
- Surveillance
- Life sciences
- General industrial inspection
