Product Description
VC-25MX-M 42 I 25 Megapixel Two-Channel CoaXPress Camera
The VC-25MX-42 I, the latest model of the industrial proven VC series, is a new 25 megapixel resolution CMOS camera with a two-channel CoaXPress interface. The VC-25MX-42 I uses the latest CMOS global shutter image sensor (GMAX0505) technology from Gpixel and offers up to 41.7 frames per second at 5120 × 5120 resolution. These combinations of high resolution, high speed and global shutter set a new standard for industrial, scientific and surveillance digital imaging applications. Customers in the industrial market can take advantage of common coax cabling to transmit image data at up to 12.5 Gigabits per second. Featuring high speed and high resolution in a compact form factor, the VC-25MX-42 I is ideal for wide range of demanding applications such as FPD, PCB and semiconductor inspections.
MAIN FEATURES
- 25 Megapixel Resolution
- CoaXPress Interface up to 41.7 fps at 25 Gbps using 2 CH
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Dynamic Defective Pixel Correction
- GenICam Compatible - XML based Control
APPLICATIONS
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning

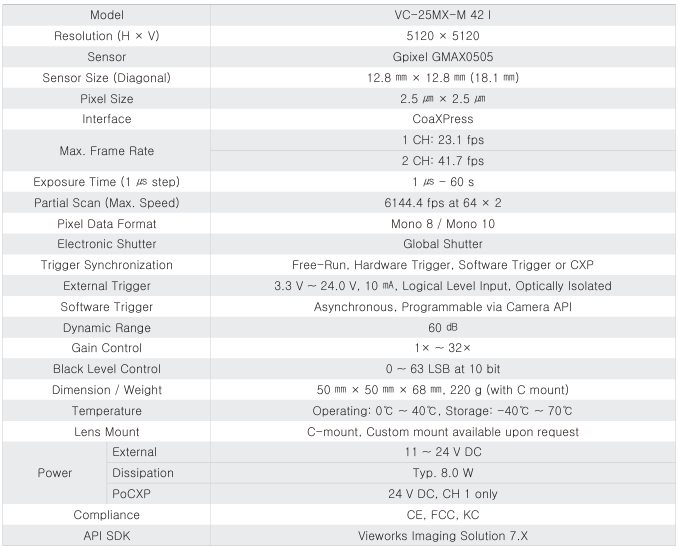

SPECIFICATIONS
