Product Description
The FreeScan Trak ProW is a wireless, optical 3D tracking and scanning system for industrial metrology that is engineered for large-scale, high-accuracy measurements. Featuring an extended 8.6-meter tracking range and a massive 206.7 m³ tracking volume in a single station setup, it dramatically reduces the need for frequent repositioning or "leapfrogging," ensuring a fast and uninterrupted workflow.
Key features
Wireless and marker-free
- Complete freedom: The FreeScan Trak ProW's completely wireless design, powered by an external power bank, provides unrestricted mobility for scanning large objects in any setting, from the shop floor to the field.

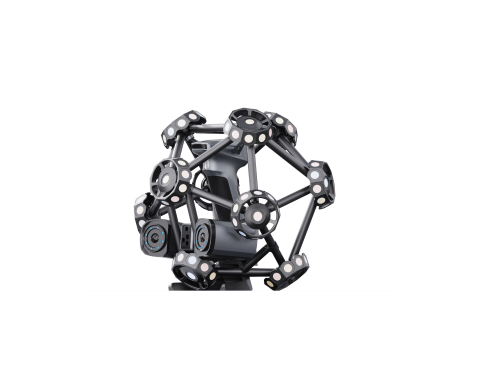

- No targets needed: With dynamic optical tracking, the system accurately follows the TE25W scanner in real-time, eliminating the need to apply and remove physical markers on the object being scanned. This simplifies setup and accelerates the workflow.
- Integrated VPG: The patented Video Photogrammetry (VPG) technology further enhances accuracy for large parts by dynamically verifying marker positions in real time through video capture.
Metrology-grade precision
- Exceptional accuracy: Certified by international metrology standards (VDI/VDE 2634 Part 3), the Trak ProW delivers metrology-grade accuracy down to 0.023 mm.
- Hybrid probing: An optional FreeProbe tactile probe integrates with the system, enabling a hybrid workflow that combines high-speed 3D scanning with traditional contact measurement for hard-to-reach areas.
- Multiple scanning modes: The TE25W handheld scanner features three modes—high-speed, detailed, and deep pocket—to handle different geometries and resolution requirements with ease.
Powerful software integration
- Streamlined workflow: The system's robust software offers intelligent features like AI-based hole detection and adaptive resolution. It is also fully compatible with leading inspection and reverse engineering software, including Geomagic Control X and Verisurf.
- Real-time feedback: An integrated display on the scanner provides real-time feedback on connection status and tracking distance, ensuring a seamless and reliable scanning process.
Industrial applications
The FreeScan Trak ProW is an ideal solution for professionals in industries demanding high accuracy, flexibility, and efficiency in 3D measurement processes.
The FreeScan Trak ProW is an ideal solution for professionals in industries demanding high accuracy, flexibility, and efficiency in 3D measurement processes.
- Automotive: Inspect body panels, analyze surface deformations, and reverse engineer components.
- Aerospace: Measure large fuselage sections, engine components, and other critical parts.
- Heavy industry and energy: Perform inspections and quality control on pipelines, turbines, and large-scale infrastructure.
