Product Description

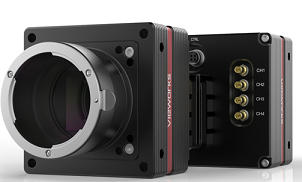

VC-65MX-M/C 35 I VC-65MX-M/C 31 I 65 Megapixel High Speed CMOS Digital Camera
The VC-65MX-31 I and VC-65MX-35 I, the latest models of the industrial proven VC series, are new 65 megapixel CoaXPress cameras and based on the latest CMOS image sensor technology (GMAX3265) from Gpixel. The VC-65MX-31 I offers up to 31.6 frames per second at 9344 × 7000 resolution. For high speed applications, the VC-65MX-35 I offers up to 35.5 frames per second at 9344 × 7000 resolution. Equipped with the Vieworks’ innovative technologies proved by world’s top FPD manufacturers, the VC 65MX cameras offer not only highly uniformed images but also high speed image processing capabilities. Featured with high quality image uniformity and high resolution, these cameras are ideal for demanding applications such as FPD, PCB and semiconductor inspections
MAIN FEATURES
- 65 Megapixel Resolution
- CoaXPress Interface up to 35.5 fps at 25 Gbps using 4 CH
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Defective Pixel Correction
- Hot Pixel Correction
- GenICam Compatible - XML based Control
APPLICATIONS
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning
SPECIFICATIONS
