Product Description

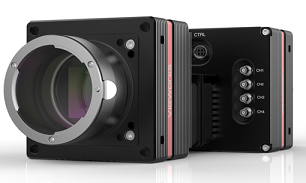

VC-65MX2-M/C 71 I 65 Megapixel High Speed CMOS Digital Camera with CoaXPress 2.0 Interface
The VC-65MX2-M/C 71 I, the latest model of the industrial proven VC series, is a new 65-megapixel CoaXPress camera and based on the CMOS global shutter image sensor technology (GMAX3265) from Gpixel. The VC-65MX2-M/C 71 I offers up to 71.1 frames per second at 9,344 × 7,000 resolution. The camera comes with the next generation CoaXPress 2.0 (CXP-12) interface delivering up to 50 Gigabits per second over four coaxial cables. These combinations of the CMOS sensor technology and CoaXPress 2.0 interface set a new standard for industrial, scientific and surveillance digital imaging applications. Equipped with the Vieworks’ innovative technologies proved by world’s top FPD manufacturers, the VC-65MX2-M/C 71 I camera offers not only highly uniformed images but also high speed image processing capabilities. Featured with high-quality image uniformity and high-resolution, this camera is ideal for demanding applications such as FPD, PCB and semiconductor inspections.
MAIN FEATURES
- High Speed 65 Megapixel CMOS Image Sensor
- CoaXPress 2.0 Interface up to 71.1 fps at 50 Gbps using 4 CH
- Global Shutter CMOS Technology
- DSNU and PRNU Correction
- Flat Field Correction
- Defective Pixel Correction
- Hot Pixel Correction
- GenICam Compatible - XML based Control
APPLICATIONS
- Flat Panel Display Inspection
- Electronics Inspection
- Semiconductor Inspection
- Document / Film Scanning

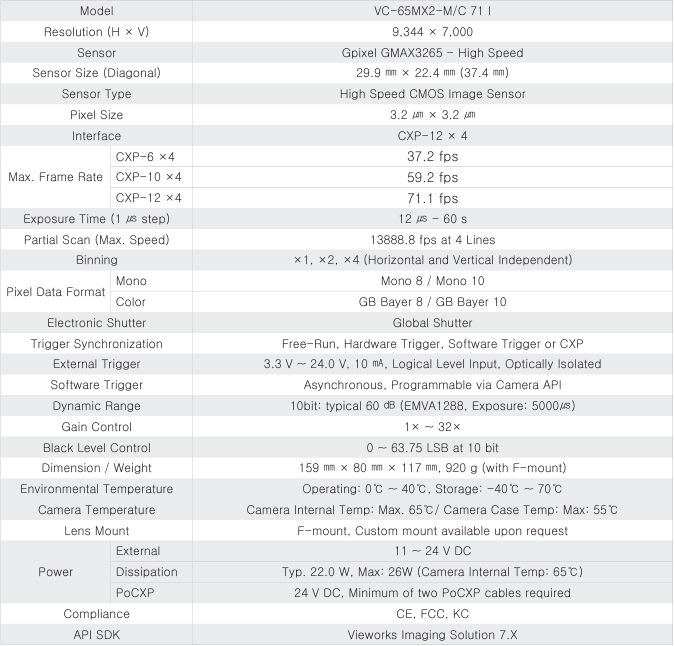

SPECIFICATIONS
