Product Description
The Basic Characteristic of BMM Series
BMM is a series of electric controlled continuous zoom and autofocus all-in-one digital microscope with a large field of view. It is integrated with HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumination Light. BMM is the abbreviation of BestScope Macro Microscope. Different products in the BMM series can be formed with different parts to satisfy the application requirement. It can be assembled with various brackets or arms and offer a continuous zooming ratio with different lens. BMM also supports autofocus mode and manual focus mode.
BMM comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has XFCAMView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by BMM can be saved on an SD card (not included) for on-site analysis and follow-up research.
BMM can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.

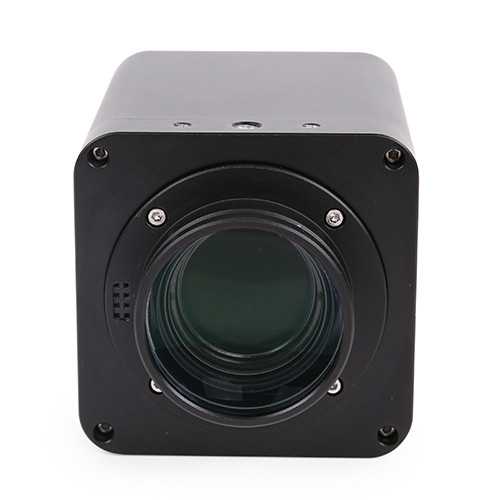

BMM-4K8MPB supports HDMI/USB/LAN/WiFi control and video output (ImageView). The frame rate of the output is 4K/30FPS, and the zoom range is 1X~18X. It also supports electric zoom and auto focusing.

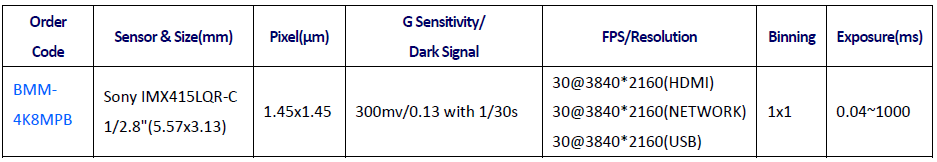

BMM Camera Module
C: Color; M: Monochrome;

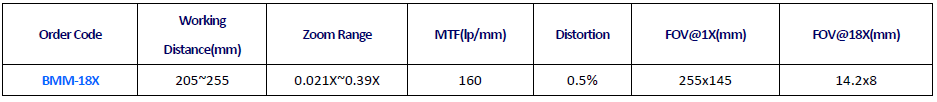

BMM Lens Module
1X and 18x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification. Here, the normalized equations are 1x = 0.021/0.021; 18X=0.39/0.021;
