Product Description

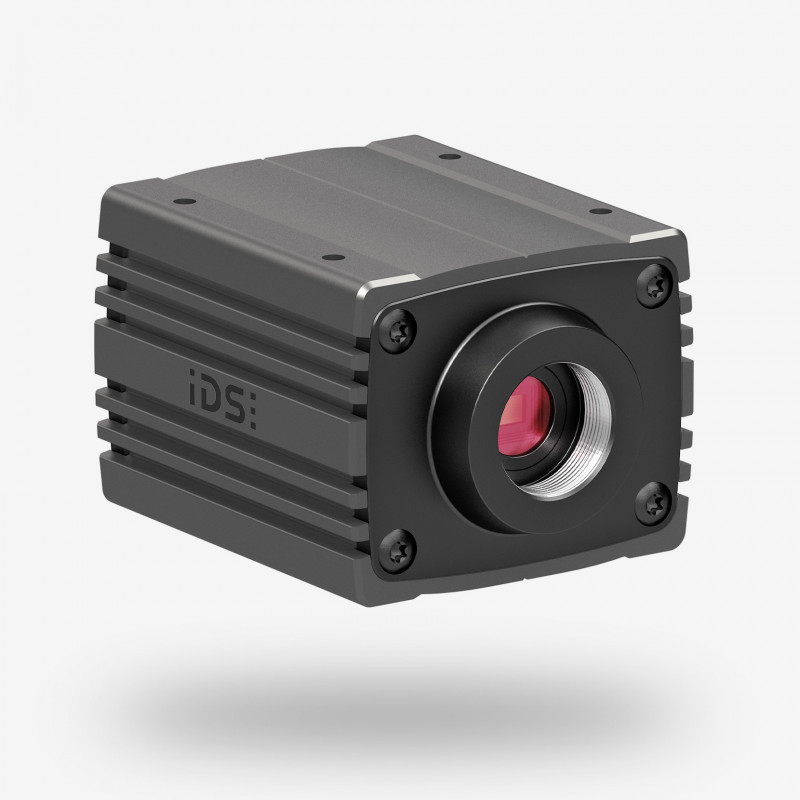

The IDS GV-7000WP-M-GL is a high-performance, 10GigE monochrome area scan camera designed for demanding industrial and scientific applications. A member of the uEye+ Warp10 series, this camera provides a winning combination of exceptional resolution, high frame rates, and a high-speed interface to meet the needs of modern machine vision.
Key features
Speed and bandwidth
- 10GigE interface: The 10GBASE-T Ethernet interface provides a massive bandwidth of 10 Gbit/s, offering a 10-fold speed increase over standard GigE cameras. This allows for the high-speed transfer of large image data volumes without a need for repeaters over cable lengths of up to 100 meters.
- High frame rate: The camera is capable of capturing up to 44.5 frames per second (fps) at its full 12.37-megapixel resolution. For applications that require even higher speeds, the frame rate can be further increased using a smaller area of interest (AOI).
- Legacy compatibility: For seamless integration into existing infrastructure, the camera is backward compatible with 1GigE, 2.5GigE, and 5GigE networks and will automatically adjust its speed.
Image quality
- High-resolution sensor: At its core is the 12.37 MP Sony IMX253 global shutter CMOS sensor, providing a resolution of 4112 x 3008 pixels. This large format sensor (1.1") and a 3.45 µm pixel size ensure high image quality and light sensitivity.
- Global shutter: The camera's global shutter prevents image distortion when capturing fast-moving objects, ensuring that every detail is captured with exceptional clarity and sharpness.
- Monochrome excellence: The "M" in the model name signifies a monochrome sensor, which is ideal for applications requiring maximum light sensitivity and high contrast. This makes it particularly well-suited for low-light scenarios, microscopy, and detailed inspection tasks.
- Low noise: An extremely low dark noise level makes the camera suitable for highly sensitive applications in fields such as biosciences.
Robust design and easy integration
- Industrial-grade housing: The GV-7000WP-M-GL features a robust, full metal housing with an IP30 rating. A standard C-mount lens mount and screwable RJ45 connector provide secure, reliable connections.
- Power over Ethernet (PoE): Simplify wiring and installation by powering the camera directly through the Ethernet cable, eliminating the need for a separate power supply. The camera can also be powered via GPIO.
- Software support: The camera is GenICam compliant, allowing for easy integration with a wide variety of third-party software. For IDS-specific functionality and ease of setup, the camera is also supported by the IDS Peak SDK.
Ideal applications
The combination of high resolution, speed, and sensitivity makes the GV-7000WP-M-GL an excellent solution for a broad range of high-end applications.
- Machine vision: For quality control, high-speed inspection of components, and production line monitoring.
- Electronics inspection: Detailed inspection of PCBs and other microelectronics.
- Metrology: High-precision measurement and analysis.
- Microscopy: High-resolution, low-noise imaging for scientific research.
- Sports and motion analysis: Capture and analyze high-speed processes without motion blur.
