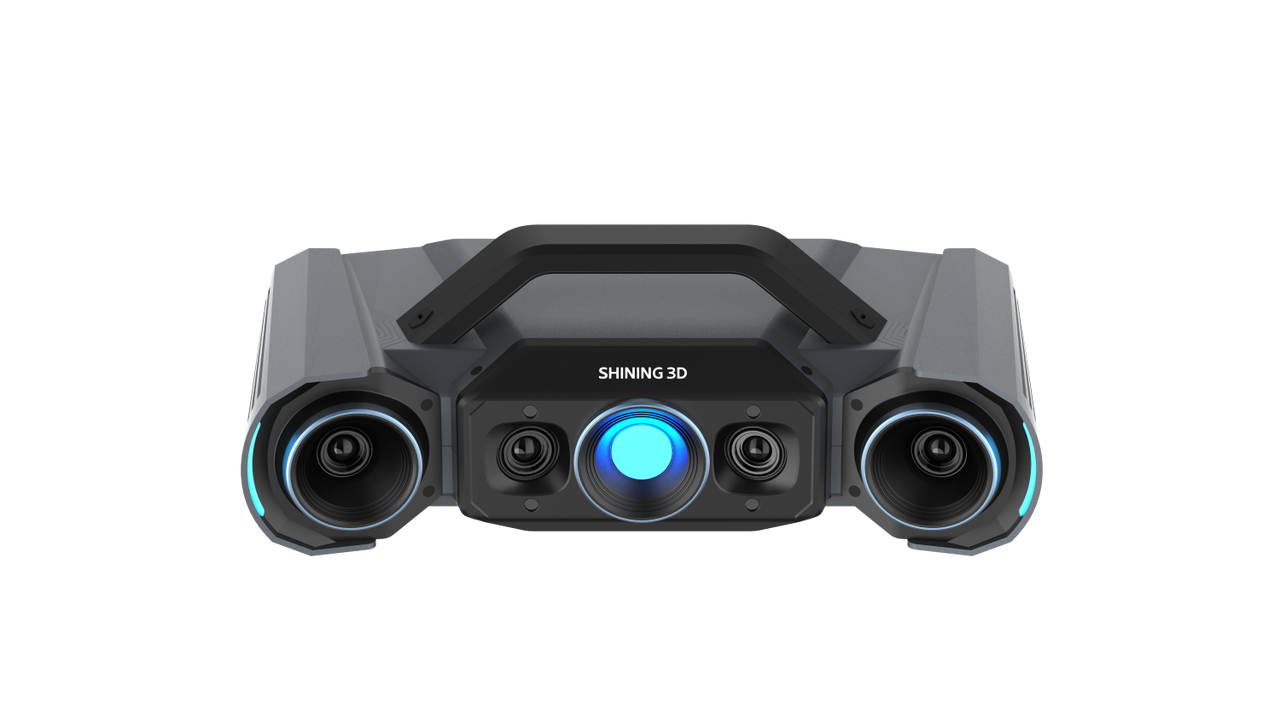

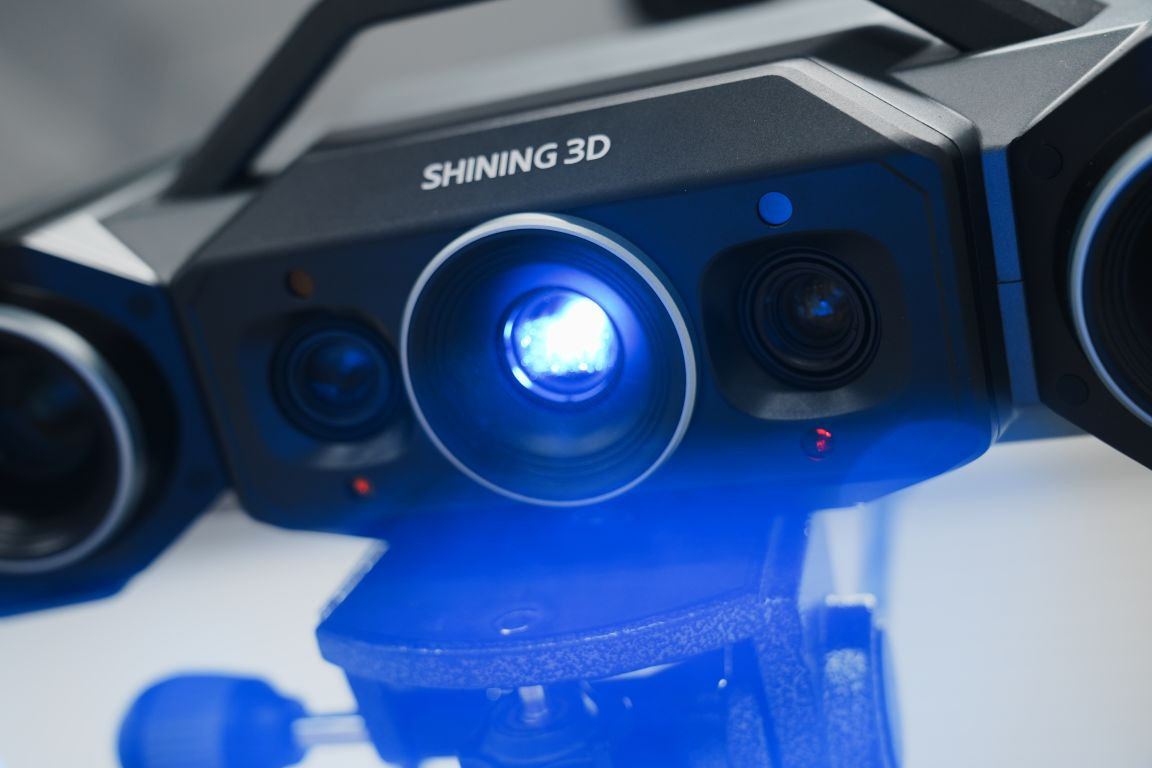

SHINING 3D OptimScan Q12 is a high-precision 3D scanner with 4 × 12.3 megapixel cameras. It supports two scan ranges, allowing users to switch between them with a single click. Compared to the previous generation, OptimScan Q12 offers enhanced data acquisition capabilities, faster scanning speed, and broader material adaptability. It also supports integration with robots, enabling customized and fully automated solutions to meet your unique requirements
Key features
- Exceptional Accuracy: Delivers an impressive accuracy of up to 0.005 mm, ensuring stable repeatability for capturing intricate details and complex geometries.
- Dual Scan Range: Equipped with two scan ranges (large: 430 × 300 mm, small: 160 × 110 mm) that can be switched with a single click, eliminating manual adjustment of aperture and focal length.
- High-Resolution Cameras: Features four 12.3 megapixel industrial cameras for capturing fine surface details.
- Fast Scanning: Utilizes a built-in dual-chip computing module for rapid image acquisition and data processing, with each scan taking less than 1 second and capturing up to 12 million points.
- Monocular-Stereo Fusion (MSF) Technology: Enhances data coverage, particularly on complex edges and corners, improving the integrity of scanned data.
- Multiple Exposure Modes: Adapts to various surface types, including reflective or dark finishes, for optimal results.
- Versatile Operation: Supports manual handheld scanning for maximum flexibility, semi-automated setups using a fixed tripod and automatic turntable (up to 20kg load), and full robotic integration for precise, repeatable inspection tasks.
- Seamless Workflow Integration: Can be seamlessly integrated with intelligent 3D inspection systems, enabling a fully automated workflow from scanning to report generation.
APPLICATIONS
- Component Dimension Inspection (GD&T)
- Quality control for stamped parts and sheet metal
- Mold development and repair
- Automated in-line inspection with robots
