Product Description
Camera Family
Incredibly fast, incredibly reliable, incredible sensors: the uEye CP stands for "Compact Power" and is the tiny powerhouse for industrial applications of all kinds. It offers maximum functionality with extensive pixel pre-processing and, thanks to the internal 120 MB image memory, is also perfectly suited for multi-camera systems. The USB 3.0 cameras enable a high data rate of 420 MByte/s, low CPU utilization and easy integration.
Users can choose from a large number of modern CMOS sensors from manufacturers such as Sony, ams/CMOSIS, e2v and onsemi with different resolutions. Due to its innovative, patented housing design with dimensions of only 29 x 29 x 29 millimeters and best processing quality, the camera makes even designer hearts beat faster. In addition, screwable cables ensure a reliable electrical connection.
The cameras are suitable, for example, for tasks in fields such as automation, automotive, printing and packaging, medical technology and life sciences, agriculture, logistics as well as traffic and transport.
Note: Due to the high performance of modern sensors, some USB 3.0 uEye CP models are not supported in USB 2.0 mode. The USB 2.0 interface does not provide sufficient power for this. Further information can be found in the manual for IDS Software Suite.
Overview

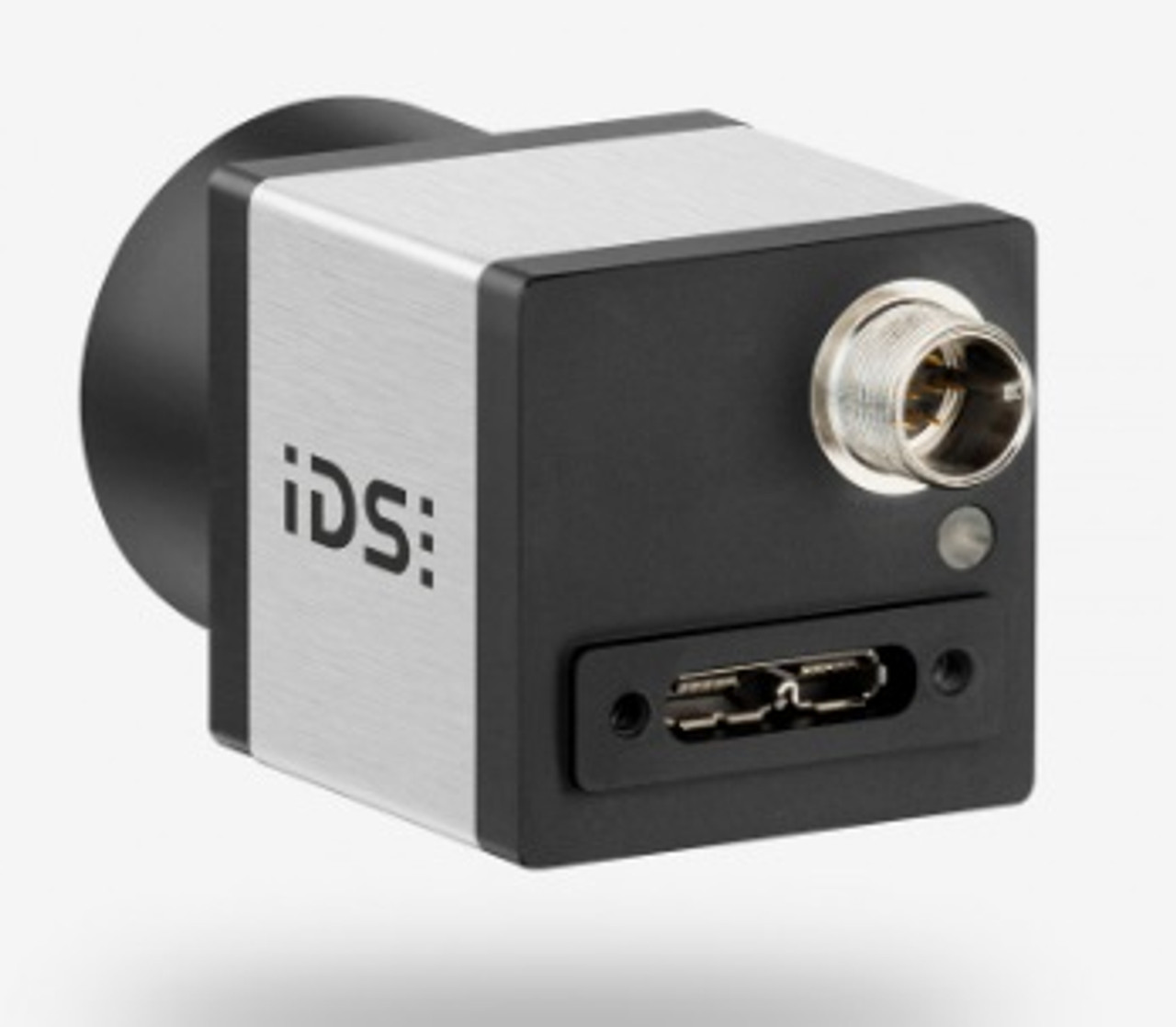

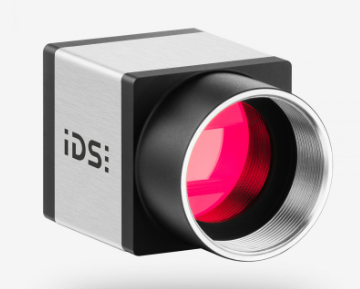

For excellent image quality even in low light scenarios or when the camera should take pictures of fast-moving objects: the cost-effective global shutter CMOS sensor IMX273 from the Sony Pregius series excels through its image quality, high sensitivity and wide dynamic range. With a resolution of 1.58 MPix (1456 x 1088 px px) at 3.45 µm pixels, it delivers impressive 251 fps when used with the USB3 Vision industrial camera U3-3040CP Rev.2.2. This makes this camera ideal for cost-sensitive and demanding machine vision applications such as surface inspections, detailed image analysis in medical technology or traffic applications.
Special functions such as long-time exposure up to 30.0 s or the linescan mode for using the industrial camera as a line scan camera also extend the range of possible applications.
The U3-3040CP Rev.2.2 is available in both monochrome and color variants.
This camera model is supported by IDS Vision firmware 2.20 and higher.
| Item number |
|
|---|---|
| Name | U3-3040CP Rev.2.2 |
| Family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Manufacturer | Sony |
| Frame rate @ resolution max. | 251 fps |
| Resolution (h x v) | 1456 x 1088 px |
| Optical Area | 5.032 mm x 3.754 mm |
| Shutter | Global Shutter |
| Optical class | 1/3" |
| Resolution | 1.58 MPix |
| Pixel size | 3.45 µm |
| IP code | IP30 |
Also available in Monochrome here
List of supported features here
