Product Description
Camera Family
Incredibly fast, incredibly reliable, incredible sensors: the uEye CP stands for "Compact Power" and is the tiny powerhouse for industrial applications of all kinds. It offers maximum functionality with extensive pixel pre-processing and, thanks to the internal 120 MB image memory, is also perfectly suited for multi-camera systems. The USB 3.0 cameras enable a high data rate of 420 MByte/s, low CPU utilization and easy integration.
Users can choose from a large number of modern CMOS sensors from manufacturers such as Sony, ams/CMOSIS, e2v and onsemi with different resolutions. Due to its innovative, patented housing design with dimensions of only 29 x 29 x 29 millimeters and best processing quality, the camera makes even designer hearts beat faster. In addition, screwable cables ensure a reliable electrical connection.
The cameras are suitable, for example, for tasks in fields such as automation, automotive, printing and packaging, medical technology and life sciences, agriculture, logistics as well as traffic and transport.
Note: Due to the high performance of modern sensors, some USB 3.0 uEye CP models are not supported in USB 2.0 mode. The USB 2.0 interface does not provide sufficient power for this. Further information can be found in the manual for IDS Software Suite.
Overview

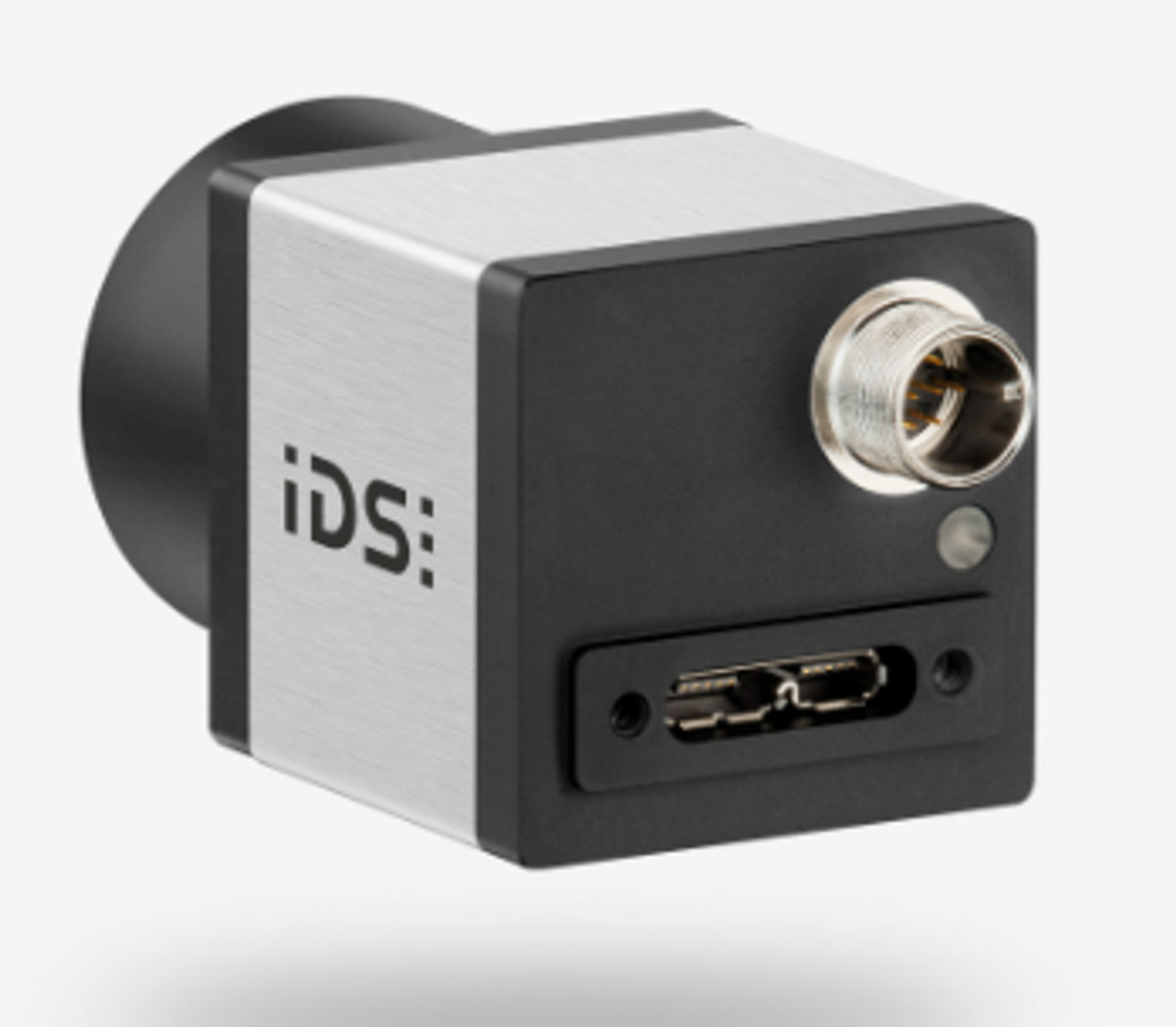

The Sony Pregius IMX252 is together with its little brother IMX265 probably the best CMOS image sensor in the 3 MP class. The USB3 Vision industrial camera U3-3070CP Rev.2.2 with the 1/1.8" global shutter sensor transmits its resolution of 3.15 MPix (2048 x 1536 px px) with a frame rate of 114 fps via the USB interface. In terms of dynamic range, sensitivity and linearity, the camera is second to none and inspires industrial customers in mechanical engineering, metrology and medical technology.
Special functions include 90.0 s long exposure and the linescan mode for using the area scan camera as a cost-effective line scan camera alternative.
The U3-3070CP Rev.2.2 is available in both monochrome and color variants.
This camera model is supported by IDS Vision firmware 2.20 and higher.
| Item number |
|
|---|---|
| Name | U3-3070CP Rev.2.2 |
| Family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Manufacturer | Sony |
| Frame rate @ resolution max. | 114 fps |
| Resolution (h x v) | 2048 x 1536 px |
| Optical Area | 7.066 mm x 5.299 mm |
| Shutter | Global Shutter |
| Optical class | 1/1.8" |
| Resolution | 3.15 MPix |
| Pixel size | 3.45 µm |
| IP code | IP30 |
