Product Description

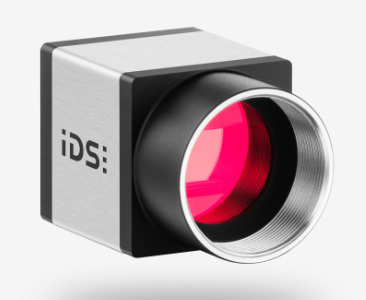

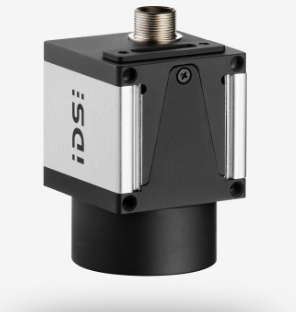

The USB3 camera U3-3130CP Rev. 2.2 with 1/3.6" global shutter CMOS sensor PYTHON 500 from onsemi is made for high speeds. Thanks to the sensor's unique AOI function (horizontal and vertical readout), the industrial camera achieves extremely high frame rates.
This makes the 0.48 MPix uEye+ CP camera (800 x 600 px pixels, up to 396 fps) particularly suitable for classic machine vision applications, for slow motion or high-speed tracking applications. Available as monochrome or colour version.
| Item number |
|
|---|---|
| Name | U3-3130CP Rev. 2.2 |
| Family | CP |
| Interface | USB 3 |
| Interface-Speed | 5.00 Gbps |
| Sensor type | CMOS |
| Manufacturer | onsemi |
| Frame rate @ resolution max. | 396 fps |
| Resolution (h x v) | 800 x 600 px |
| Optical Area | 3.840 mm x 2.880 mm |
| Shutter | Global Shutter |
| Optical class | 1/3.6" |
| Resolution | 0.48 MPix |
| Pixel size | 4.80 µm |
| IP code | IP30 |
**Also available in Monochrome
**Explore our compatible lenses, cables, and lighting, or contact us to speak with a machine vision specialist.
